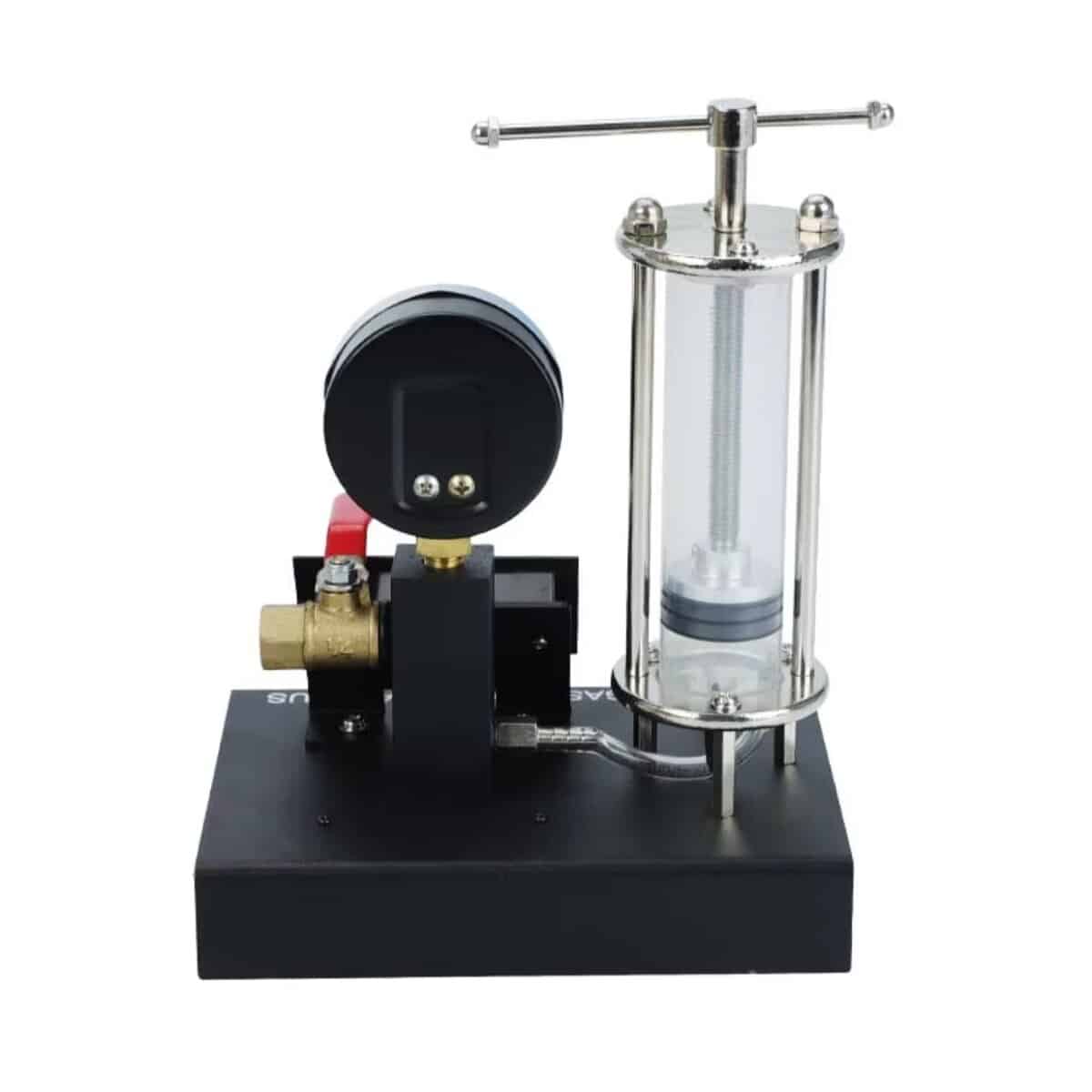

Gas Laws Demonstrator (Boyle’s Law Apparatus)

This equipment is designed to show the relationship between pressure and volume of a gas at constant temperature, as described by Boyle’s Law

Common Features:

• Sealed syringe or piston (to vary volume)

• Pressure gauge (to measure pressure changes)

• Scale or ruler (to measure volume changes)

• Temperature control (some advanced models include a water bath for isothermal conditions)

• Sturdy base & frame for stability

Typical Experiments:

1. Boyle’s Law Verification – Compress or expand gas while measuring $P$ and $V$.

2. Charles’s Law (if temperature control is available).

3. Combined Gas Law & Ideal Gas Law demonstrations.
